Brush cutter tiller

---

2602-00110

BASEH

1+1 Mini Tiller Unit for Backpack or Straight Brushcutters

The BASEH 1+1 tiller attachment is compatible with most backpack or straight type brushcutters, making tilling easy. It fits various brushcutter pipe diameters and connection adapters, and is simple to install. In case you need another shaft adapter then supplied with the tiller, please have a look in our product range.

Ideal for gardeners and farmers, it performs well in hobby and flower gardens, vegetable and fruit greenhouses, and narrow areas like the bottoms of shrubs and bushes. It's also suitable for trench, slope, and under-forest cleaning on uneven terrain.

Its oil-bathed, powerful gear system ensures smooth, long-term operation with minimal maintenance, effectively transmitting power from 2-stroke or 4-stroke trimmers to the blades.

Unique Features:

• Specially developed trimmer pipe protection that prevents warping and breakage.
• Improved anchor segments that can be mounted to the gearbox in two ways:
  1. Hoeing Mode: For hoeing, processing, and sowing.
  2. Weeding Mode: By adjusting the connection of the slices to the gearbox, the product can easily be converted into a weeding machine.

Axle connection: 32 mm

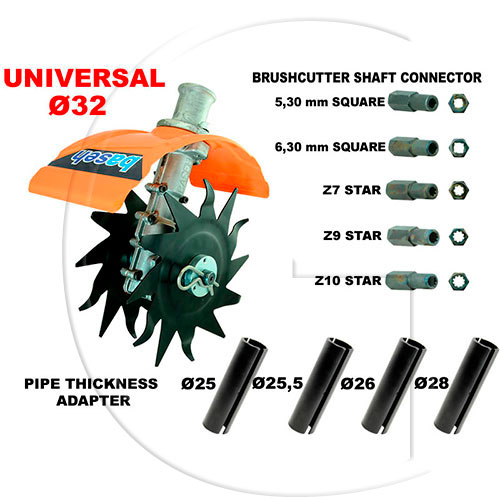

The Universal model

A connection adapter set suitable for all kinds of trimmer pipe diameters and 5 pieces of suitable connection adapters are provided.

Include:

5 pcs  shaft connection adaptor set:

• Ø 5,30 mm
• Ø 6,30 mm
• Z7 star
• Z9 star
• Z10 star

Pipe thickness adapters:

• Ø 25 mm
• Ø 25,5 mm
• Ø 26 mm
• Ø 28 mm
• Ø 32 mm

Tilling depth: 250 mm

Blade diameter: 250 mm

Permitted engine speed: 13.000 RPM

Required engine power: 1,6 HP

Weight without engine and shaft: 3,5 kg

---

USER MANUAL English (pdf)
