Red Mountain Prime Post Puller
RM57-PP3000

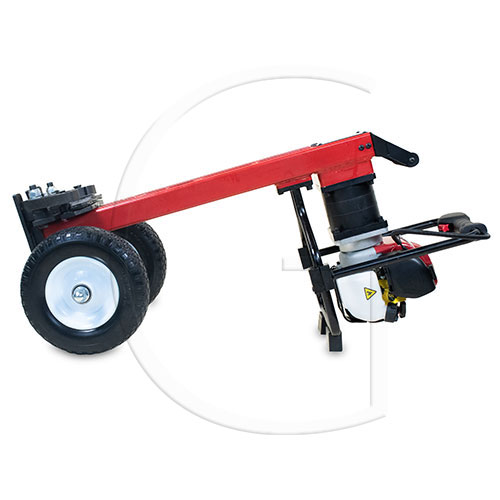

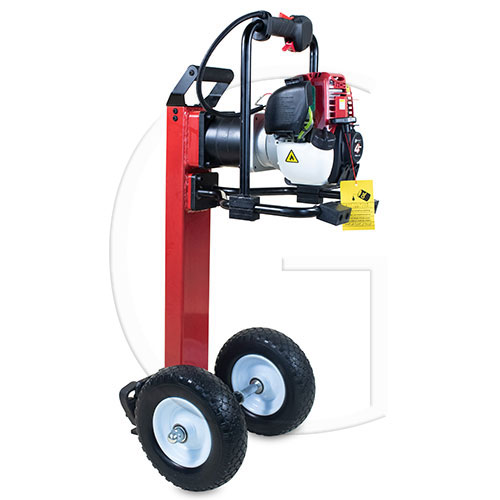

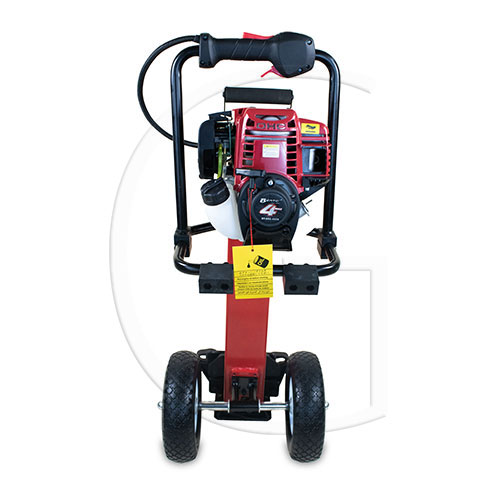

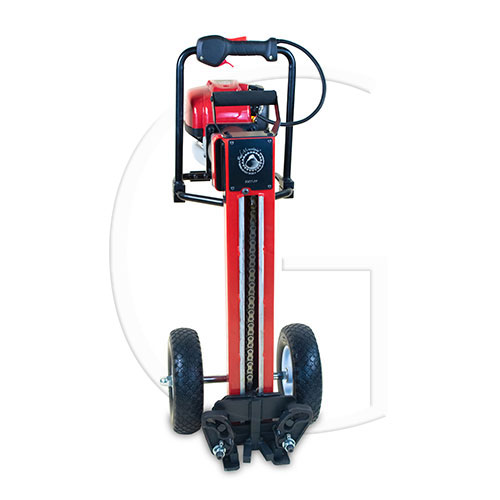

Red Mountain Prime Post Puller, RM57-PP3000
This Red Mountain Post and Stake Puller is powered by a 4-stroke engine, delivering 1.3 horsepower and equipped with a heavy-duty clutch system. This rugged tool offers up to 2500 kg of vertical pulling force, making it ideal for extracting posts, pipes, rods, and stakes with speed and precision — in half the time compared to manual methods.
Engineered for versatility, the unit includes four sets of quick-change forged steel jaws, allowing you to grip and pull materials ranging from 1 cm to 85 cm in diameter. A forked adapter for pulling tent stakes driven flush to ground level is also included.
Designed for portability and ease of use, this puller is 100% self-contained, mounted on never-flat turf tread tires, and requires no external air supply or hydraulic systems.
Note: This tool is not intended for use on posts or stakes embedded in concrete.
Key Features:

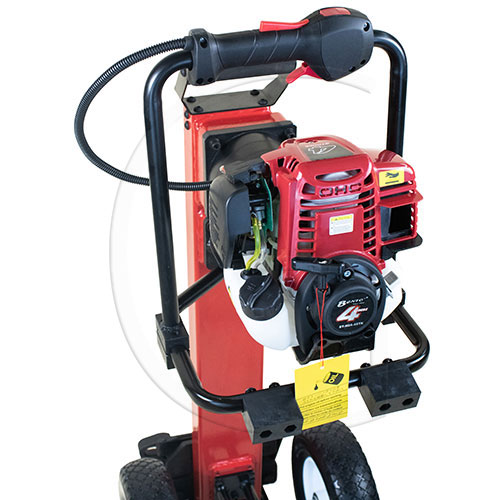

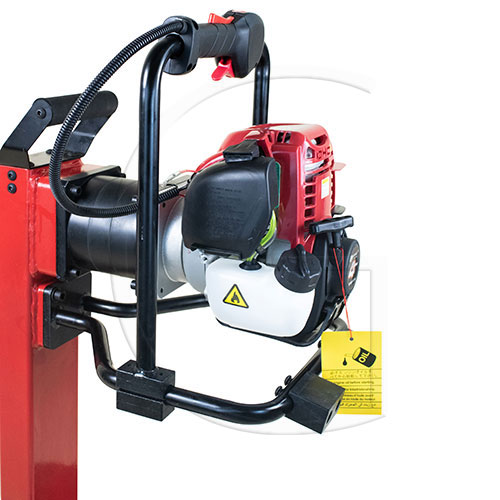

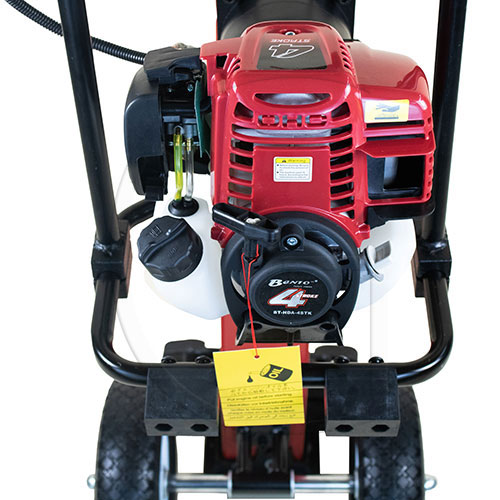

- Engine: 4-stroke, 1.3 HP
- Max Pulling Force: Up to 2500 kg vertical
- Weight: Approx. 60 kg

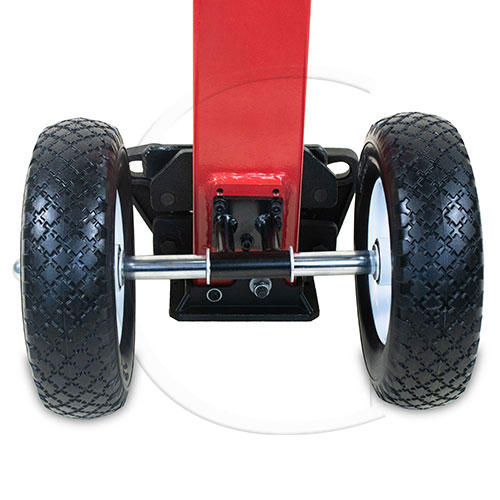

- Mobility: Tubeless, never-flat turf tires for all-terrain maneuvering
- Construction: Steel tubular roll cage protects the engine
- Control System: Recoil pull-start with trigger throttle and auto-reset stop button

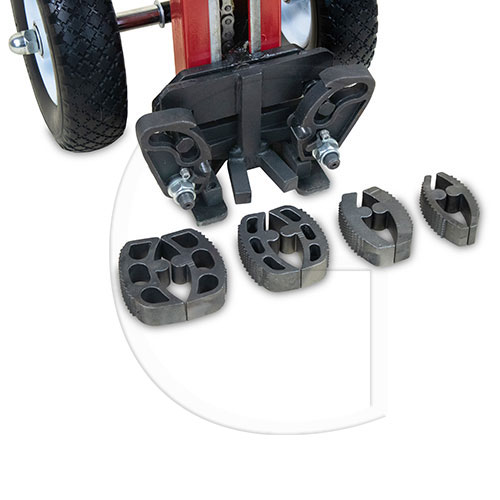

- Jaw Sets: 4 quick-change forged steel jaw sets included (1 cm to 8.5 cm)
- Adapter: Forked tent stake adapter included
- Operation: 100% self-contained – no hoses or compressors required
- Safe indurance strength of transmission chain: 30000N
- Ultimate tensile strength: 65000N (Based on in-house testing)
- Puller Power: 30000N (theoretical value)
BASIC CONFIGURATION:
- MAIN MACHINE 1
- JAW 0–25MM 1
- JAW 25–45MM 1
- JAW 45–65MM 1
- JAW 65–85MM 1
- TENT STAKE ADAPTER FORKED JAW 1
